CF-M 2505 Capsule Filling Machine — up to 150,000 capsules/hour
CF-M 2505 series automatic capsule filling machine is the successor to the NJP-2000 series, designed with new attributes for enhanced all-round performance.
THE APPLICATION
Equipment overview.
CF-M 2505 series automatic capsule filling machine is the successor to the NJP-2000 series, designed with new attributes for enhanced all-round performance. Max output is 150,000 capsules/hour for CF-M 2505 machine.
EQUIPMENT INFORMATION
Technical details.
Confirm the model, utilities and configuration for your project with our team.
Technical specifications
| Model | CF-M 2500B/C/H; CF-M 2505H |
|---|---|
| Maximum output | 150,000 capsules/hour (both models) |
| Number of die holes | 18 (both models) |
| Filling dosage form | Powder, pellets, tablet |
| Capsule size | 00#–5# and safety capsule A–E |
| Motor power | 3.37 kW |
| Power supply | AC 380 V; 50 Hz |
| Noise | ≤75 dBA |
| Vacuum degree | −0.02 to −0.06 MPa |
| Compressed air (segment cleaning) | 3 m³/h; 0.3–0.4 MPa |
| Dimensions | 1100 × 1200 × 1950 mm |
| Weight | 1360 kg |
Source: manufacturer specification sheet, page 2 (PDF). Confirm the selected configuration and documentation requirements with Captek.
Attributes

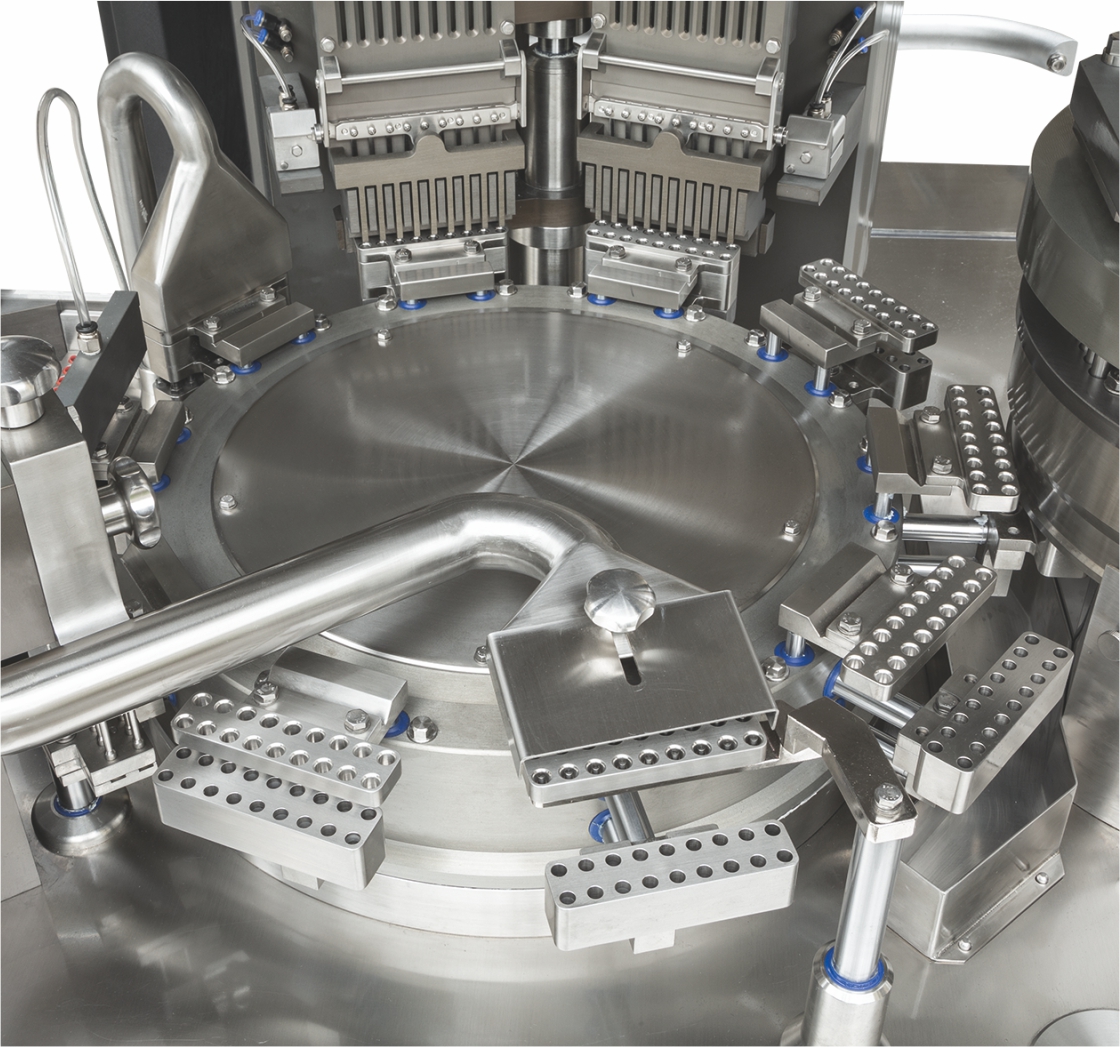

- The 2505 model has enclosed turning tables for easy cleaning

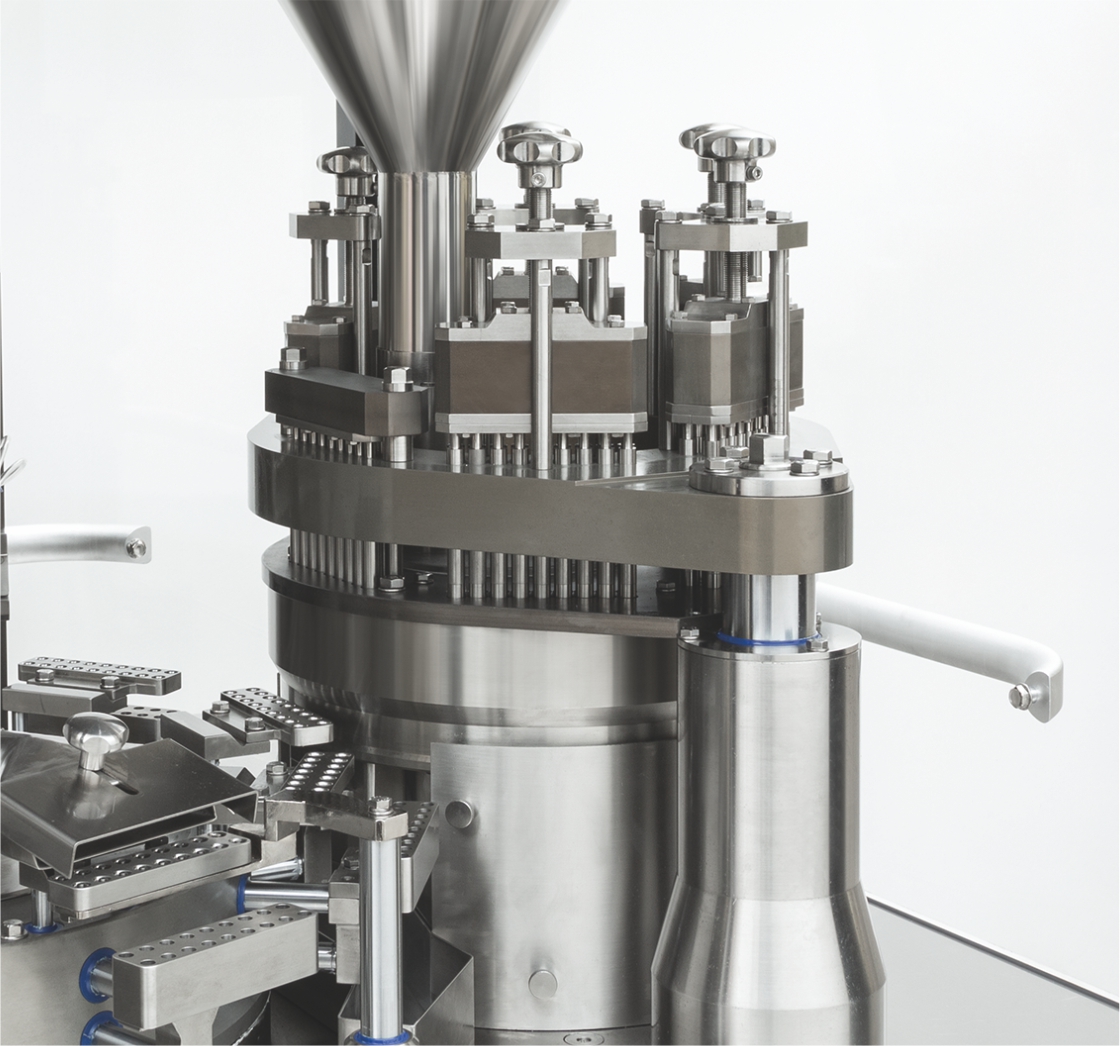

- Coordinated movement of the upper and lower segments with a two-lip seal
- Combined air blowing and suction at the segment-cleaning station

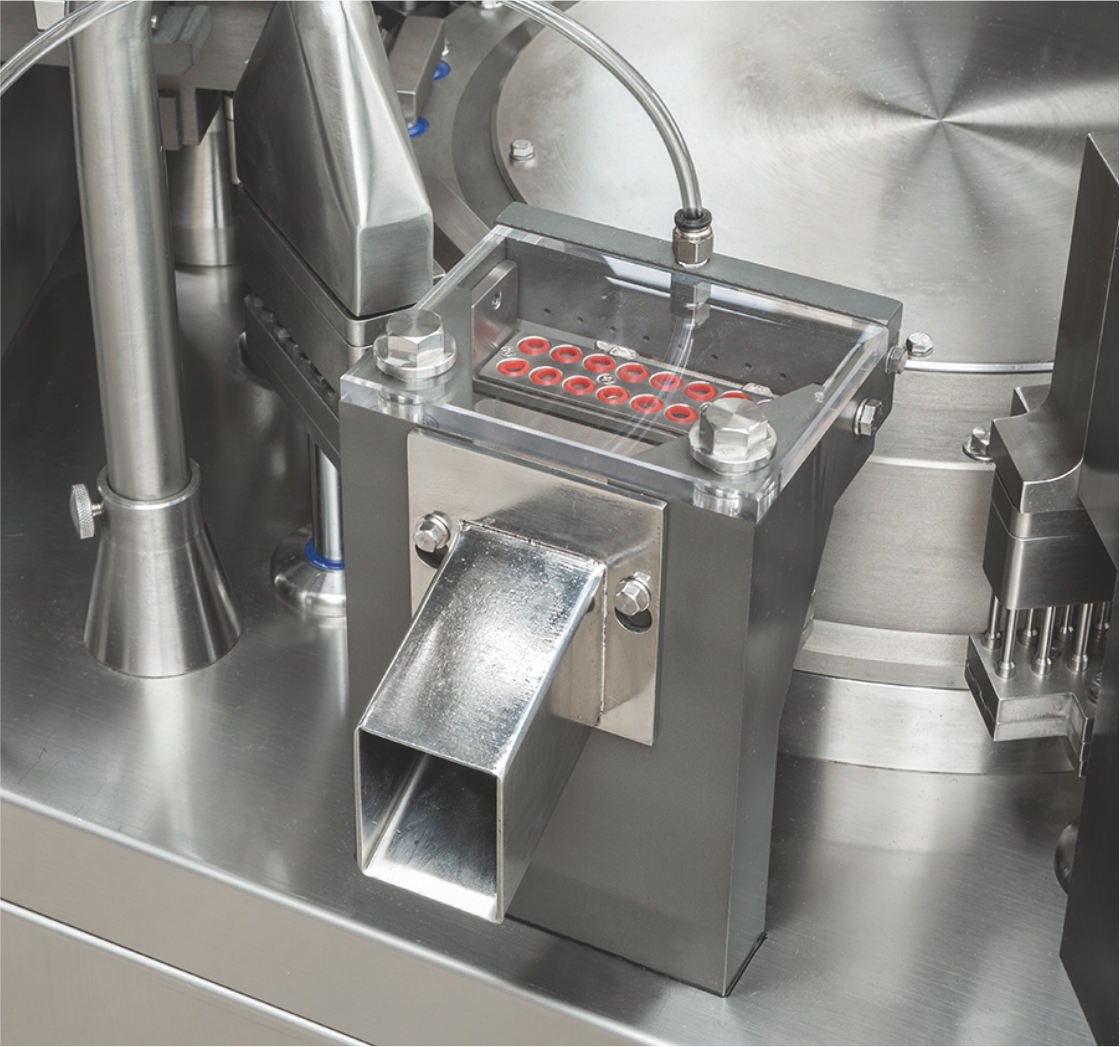

- Dust-preventing rubber block on capsule discharge station

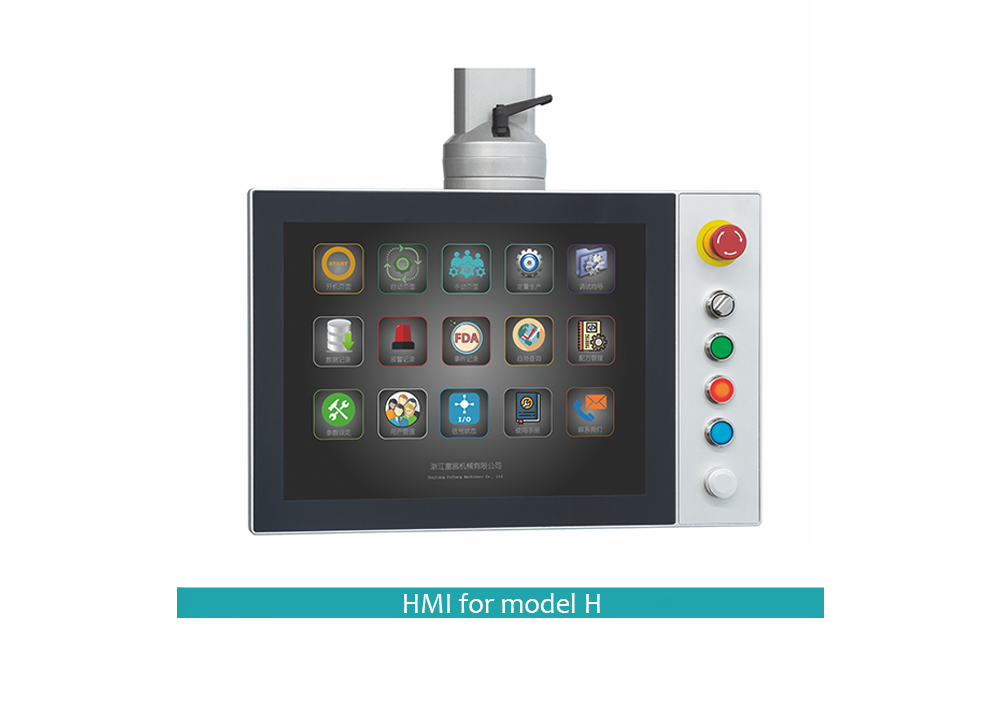

Model H has the following characteristics:
- Control system is provided with OPC Server.
- Control system includes e-signature and e-recording for work monitoring purposes. Specific user accounts can be created for data and quality management.
- Control system is provided with an industrial grade ethernet interface that connects with the OPC Client.
- A high-capacity hard drive for data recording.
Product references: CF-M 2500-B | CF-M 2500-C | CF-M 2500-H | CF-M 2505-H
